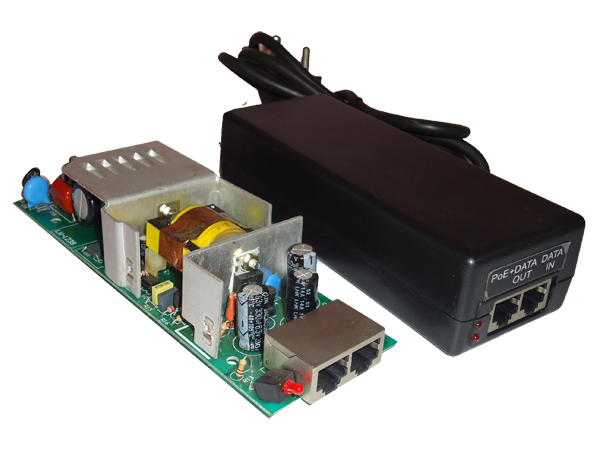

Drawing/Photograph:  |
Technical specification:
1. Input Voltage: 90V to 285V AC
2. Output Voltage: 24V DC (+/- 5%)
3. Output Current: 1A
4. Frequency: 50/60Hz
5. Efficiency: 85% |
Protections:
1. Input Protection: Internal Primary current fuse, inrush limiting.
2. Overload protection.
3. Output Short Circuit Protection.
4. Low Cut & High Cut.
5. Current Limiting. |
Mechanical:
1. Case: Desktop Style
2. Cords: Input thru 3 pin AC Cord and Output thru Dual port RJ45
3. Dimension (LxBxH): 150x57x37mm |
