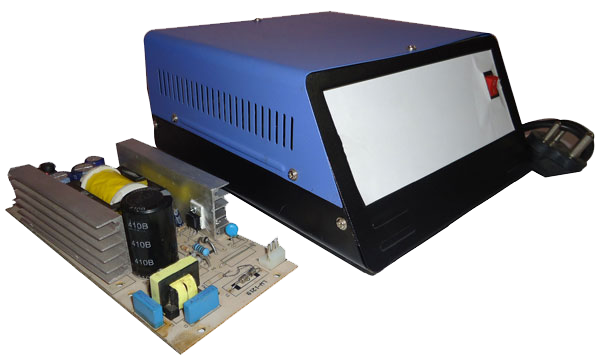

Drawing/Photograph:
 |
Technical specification:
1. Input Voltage: 90V to 285V AC
2. Output Voltage: 48V DC (+/- 5%)
3. Output Current: 3A
4. Frequency: 50/60Hz
5. Efficiency: 85% |
Protections:
1. Input Protection: Internal Primary current fuse, inrush limiting.
2. Overload protection.
3. Output Short Circuit Protection.
4. Low Cut & High Cut.
5. Current Limiting. |
Mechanical:
1. Case: Desktop Style-Metal
2. Cords: Input thru 3 pin AC Cord and Output thru DC Cord
3. Dimension:
Bottom Length: 216mm
Top Length:163mm
Width: 203mm
Height: 94mm |
