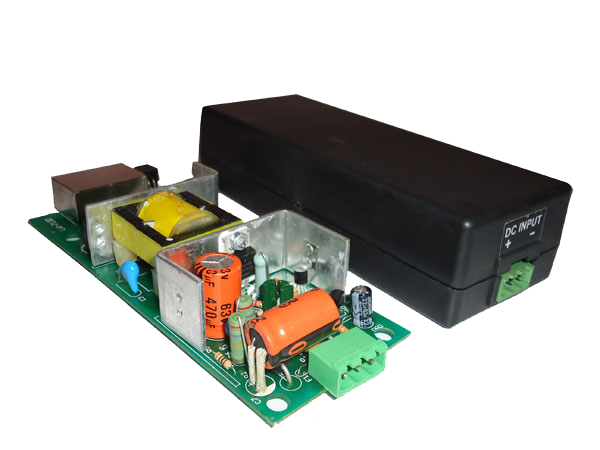

Drawing/Photograph:
 |
Technical specification:
1. Input Voltage: 48V DC
2. Output Voltage: 22V DC (+/- 5%)
3. Output Current: 0.6A4. Efficiency: 85% |
Protections:
1. Overload protection.
2. Output Short Circuit Protection.
3. Current Limiting. |
Mechanical:
1. Case: Desktop Style
2. Cords: Input thru 3 pin Green Connector and Output thru Dual port RJ45
3. Dimension (LxBxH): 150x57x37mm |
